Demonstration Cases

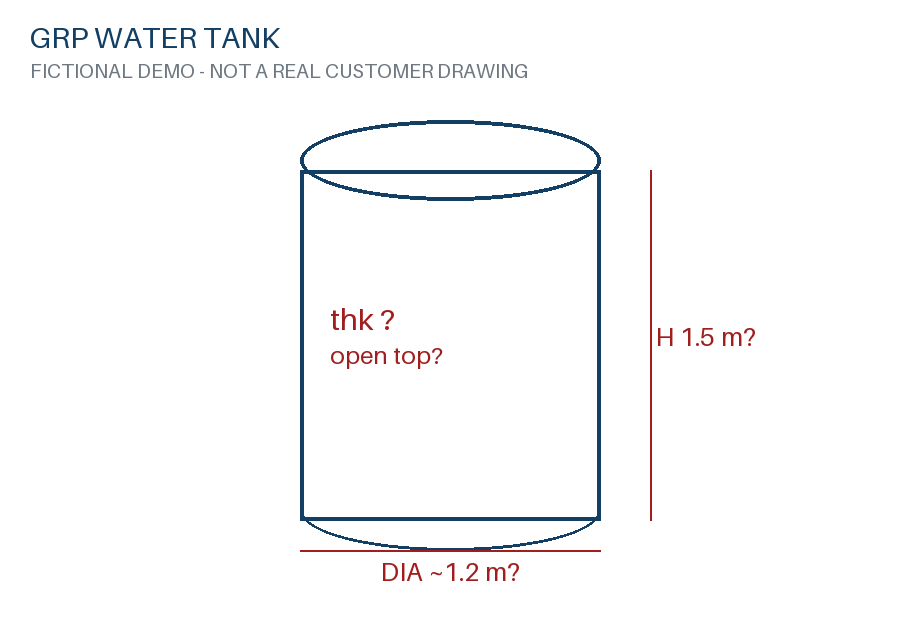

FICTIONAL DEMO. Customer needs a round GRP water tank, about 1.2 m wide and 1.5 m tall. Please quote for 2 pieces. Thickness as per standard.

Thickness and end covers are unstated, so review must ask questions before calculating.

Run this case

Open in Describe form instead

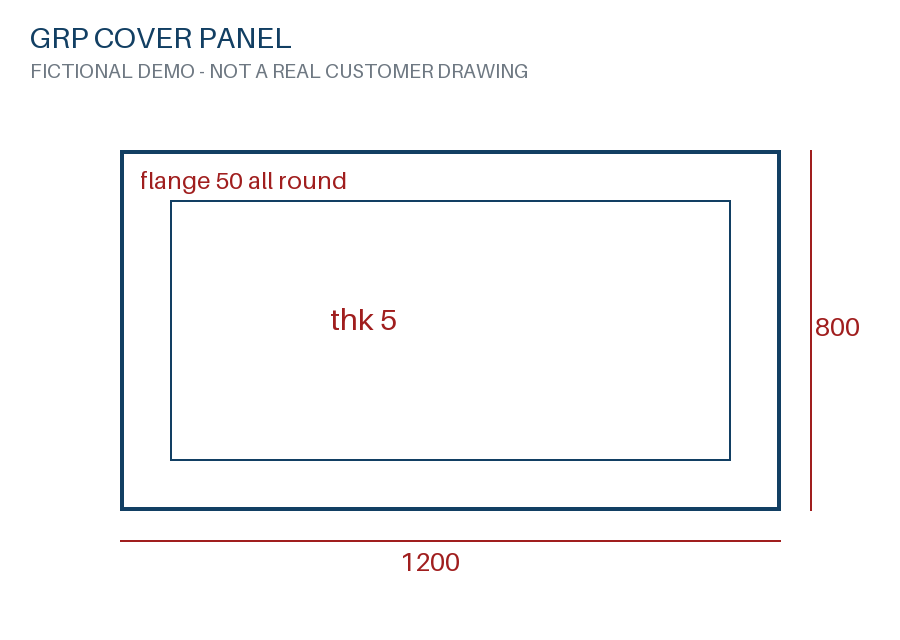

FICTIONAL DEMO. GRP cover panel 1200 x 800 mm, 5 mm thick, 50 mm all-round flange. Quantity 5.

Every value is on the drawing and repeated in the text. Expect zero missing items.

Run this case

Open in Describe form instead

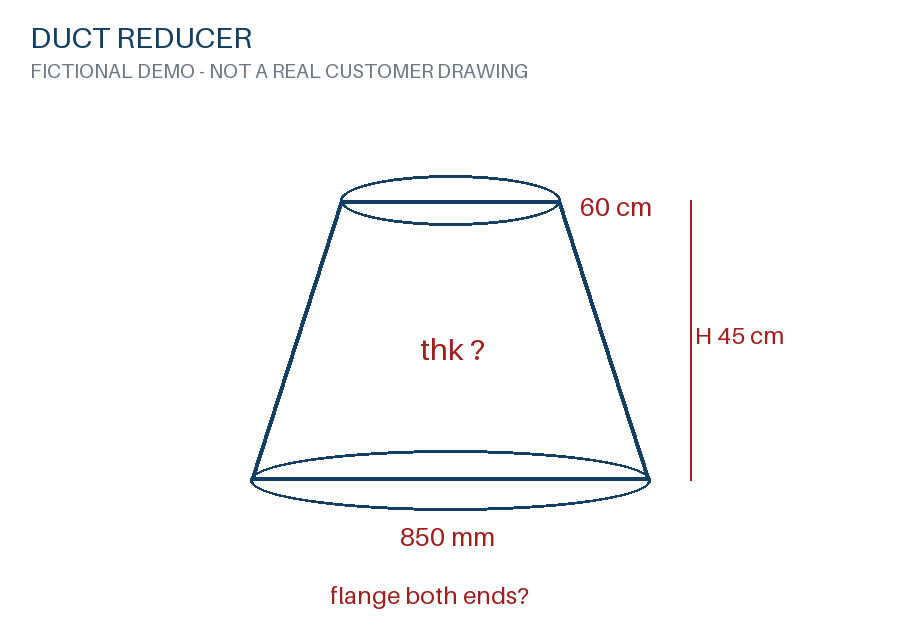

FICTIONAL DEMO. Reducer 850 mm down to 60 cm, height 45 cm. Flange both ends. No thickness on sketch.

Mixed units plus missing thickness plus an unsupported flange request must all be flagged.

Run this case

Open in Describe form instead
